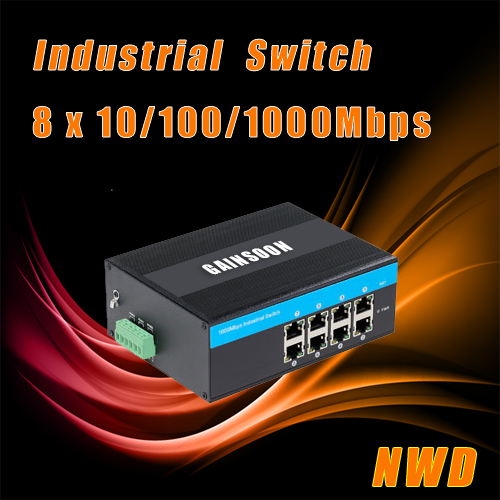

Product Introduction
☆ Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
☆ IEEE 802.3af power on to 1 ~ 8RJ45 ports
☆ 8x 10/100/1000Mbps Auto-sensing RJ45 ports
☆ 4KV Ethernet surge protection, adapt to a harsh outdoor environment
☆ Support Auto MDI/MDIX
☆ Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
☆ IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
☆ Max power to15.4W under af standard
☆ Detect the PoE models of electrical equipments.
☆ A store-and-forward switching mechanism
☆ Operating environment temperature:-40 ° ~85 ° c
☆ Intelligent power consumption detection and classification
☆ SW-Ring ring network patent technology (Fault recovery time<20ms）
☆ IGMP Snooping, GMRP and static IGMP
☆ VLAN,PVLAN, control broadcast domain
☆ IEEE802.1p_QOS
☆ Port trunking, rate control, broadcast storm control
☆ SNMP, Telnet, WEB
☆ SSH,SSL,ACL, automatic MAC address bounding
☆ Support port mirroring
☆ Alarming: support ARP listening, power down, and ring-alarm
☆ Support link monitoring
