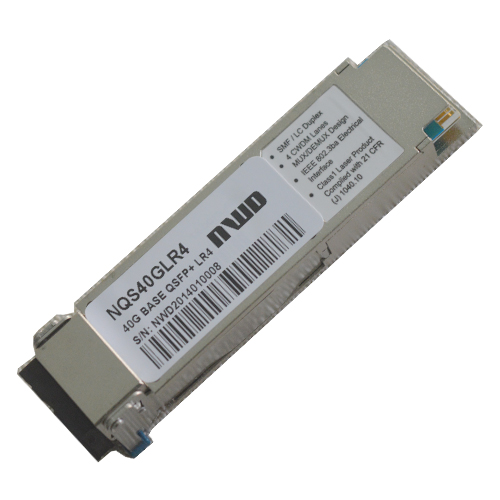

Product Introduction
☆ Hot-pluggable QSFP+ form
factor
☆ 4 independent full-duplex
channels
☆ Up to 11.2Gbps per channel
bandwidth
☆ Aggregate bandwidth of >
40Gbps
☆ QSFP MSA compliant
☆ VCSEL/DFB/EML transmitter
☆ Built-in digital diagnostic
functions
☆ Duplex LC
receptacles/Single MPO-12 receptacle
☆ Single +3.3V power supply
operating
☆ TX input and RX output CDR
retiming
☆ Temperature range 0°C to
70°C
☆ RoHS-6 Compliant
|
P/N |
Package |
Distance |
Wavelength |
Source |
Fiber |
Output Power |
Sensitivity |
|
N-QS-40GL01 |
QSFP+ |
100m |
850nm |
VCSEL |
MM |
-7.6 ～+1dBm |
≦-9.5dBm |
|
N-QS-40GL03 |
QSFP+ |
300m |
850nm |
VCSEL |
MM |
-7.3 ～+1dBm |
≦-9.9dBm |
|
N-QS-40GLC2 |
QSFP+ |
2km |
CWDM |
DFB |
SM |
-7 ～+2.3dBm |
≦-10dBm |
|
N-QS-40GL2 |
QSFP+ |
2km |
1310nm |
DFB |
SM |
-5.5 ～+1.5dBm |
≦-11.5dBm |
|
N-QS-40GLC2 |
QSFP+ |
2km/100m |
CWDM |
DFB |
SM/MM |
-7.0 ～+2.3dBm |
≦-10dBm |
|
N-QS-40GLC10 |
QSFP+ |
10km |
CWDM |
DFB |
SM |
-7～+2.3dBm |
≦-11.5dBm |
|
N-QS-40GL10 |
QSFP+ |
10km |
1310nm |
DFB |
SM |
-5.5～+1.5dBm |
≦-12.6dBm |
|
N-QS-40GLC40 |
QSFP+ |
40Km |
CWDM |
DFB+APD |
SM |
-2.7～+4.5dBm |
≦-19.5dBm |
