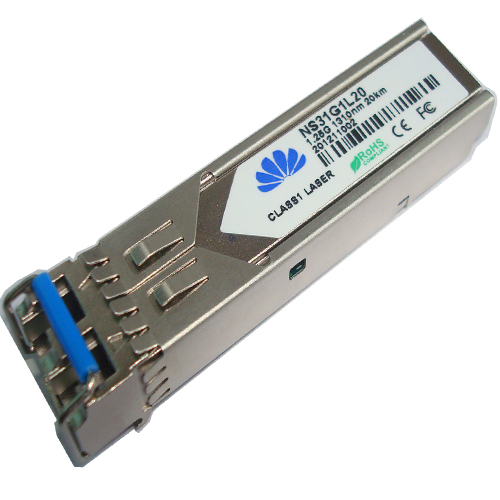

Product Introduction
☆ Hot-pluggable SFP Footprint
☆ Data rate up to 2.5Gbps
☆ LC Connector
☆ Wide Distance Supported from 500m to
120km
☆ Built-in Digital Diagnostic Functions
☆ Metal Enclosure for Lower EMI
☆ Comply with SFP MSA
☆ Comply with SDH/SONET
☆ Comply with IEEE Std 802.3
☆ Single +3.3V Power Supply
☆ RoHS-6 Compliant
|
P/N |
Data Rate |
Distance |
Wavelength |
Source |
Fiber |
Output Power |
Sensitivity |
|
N-S1-B35L3 |
1.25Gb/s |
3km |
1310T/1550R |
FP |
SM |
-9 ～-3dBm |
≦-21dBm |
|
N-S1-B53L3 |
1.25Gb/s |
3km |
1550T/1310R |
FP |
SM |
-9～-3dBm |
≦-21dBm |
|
N-S1-B35L20 |
1.25Gb/s |
20km |
1310T/1550R |
FP |
SM |
-9～-3dBm |
≦-23dBm |
|
N-S1-B53L20 |
1.25Gb/s |
20km |
1550T/1310R |
DFB |
SM |
-9～-3dBm |
≦-23dBm |
|
N-S1-B34L20 |
1.25Gb/s |
20km |
1310T/1490R |
FP |
SM |
-9～-3dBm |
≦-23dBm |
|
N-S1-B43L20 |
1.25Gb/s |
20km |
1490T/1310R |
DFB |
SM |
-9～-3dBm |
≦-23dBm |
|
N-S1-B35L40 |
1.25Gb/s |
40km |
1310T/1550R |
DFB |
SM |
-2～+3dBm |
≦-23dBm |
|
N-S1-B53L40 |
1.25Gb/s |
40km |
1550T/1310R |
DFB |
SM |
-2～+3dBm |
≦-23dBm |
|
N-S1-B34L40 |
1.25Gb/s |
40km |
1310T/1490R |
DFB |
SM |
-2～+3dBm |
≦-23dBm |
|
N-S1-B43L40 |
1.25Gb/s |
40km |
1490T/1310R |
DFB |
SM |
-2～+3dBm |
≦-23dBm |
|
N-S1-B45L80 |
1.25Gb/s |
80km |
1490T/1550R |
DFB |
SM |
-2～+3dBm |
≦-24dBm |
|
N-S1-B54L80 |
1.25Gb/s |
80km |
1550T/1490R |
DFB |
SM |
-2～+3dBm |
≦-24dBm |
|
N-S1-B45L120 |
1.25Gb/s |
120km |
1490T/1550R |
DFB+APD |
SM |
-1～+4dBm |
≦-32dBm |
|
N-S1-B54L120 |
1.25Gb/s |
120km |
1550T/1490R |
DFB+APD |
SM |
-1～+4dBm |
≦-32dBm |
|
STM-16/2.67Gb Bi-Di |
|||||||
|
P/N |
Data Rate |
Distance |
Wavelength |
Source |
Fiber |
Output Power |
Sensitivity |
|
N-S2-B35L2 |
2.5Gb/s |
2km |
1310T/1550R |
FP |
SM |
-10～-3dBm |
≦-18dBm |
|
N-S2-B53L2 |
2.5Gb/s |
2km |
1550T/1310R |
DFB |
SM |
-10～-3dBm |
≦-18dBm |
|
N-S2-B35L20 |
2.5Gb/s |
20km |
1310T/1550R |
DFB |
SM |
-5～0dBm |
≦-18dBm |
|
N-S2-B53L20 |
2.5Gb/s |
20km |
1550T/1310R |
DFB |
SM |
-5～0dBm |
≦-18dBm |
|
N-S2-B34L20 |
2.5Gb/s |
20km |
1310T/1490R |
DFB |
SM |
-5～0dBm |
≦-18dBm |
|
N-S2-B43L20 |
2.5Gb/s |
20km |
1490T/1310R |
DFB |
SM |
-5～0dBm |
≦-18dBm |
|
N-S2-B45L40 |
2.5Gb/s |
40km |
1490T/1550R |
DFB |
SM |
-2～+3dBm |
≦-18dBm |
|
N-S2-B45L40 |
2.5Gb/s |
40km |
1550T/1490R |
DFB |
SM |
-2～+3dBm |
≦-18dBm |
|
N-S2-B45L80 |
2.5Gb/s |
80km |
1490T/1550R |
DFB+APD |
SM |
-2～+3dBm |
≦-28dBm |
|
N-S2-B45L80 |
2.5Gb/s |
80km |
1550T/1490R |
DFB+APD |
SM |
-2～+3dBm |
≦-28dBm |
