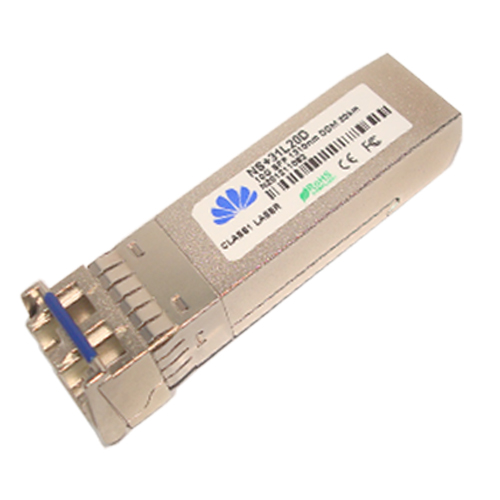

Product Introduction
☆ Duplex LC Connector
☆ 2-wire Interface for Management and Diagnostic Monitor
☆ Single 3.3 V Power Supply
☆ Compliant with SFP+ MSA
☆ Compliant with 8G FC
☆ Support Multi-rate for 8G/4G/2G FC
☆ Compliant with IEEE 802.3ae 10GBASE
☆ Compliant with SONET OC-192 / SDH STM-64
☆ Operation Temperature Range 0~70°C or -40~85°C
optional
☆ Low Power Dissipation
☆ RoHS-6 Compliant
|
P/N |
Package |
Distance |
Wavelength |
Source |
Fiber |
Output Power |
Sensitivity |
|
N-S10-F85L3 |
SFP+ |
300m |
850nm |
VCSEL |
MM |
-7.3 ～ -1dBm |
≦-11.1dBm |
|
N-S10-F31L02 |
SFP+ |
220m |
1310nm |
FP |
SM |
-7.3 ~ -1dBm |
≦-11.1dBm |
|
N-S10-F31L2 |
SFP+ |
2km |
1310nm |
FP |
SM |
-8.2 ~ +0.5dBm |
≦-12.6dBm |
|
N-S10-F31L10 |
SFP+ |
10km |
1310nm |
DFB |
SM |
-8.2 ~ +0.5dBm |
≦-12.6dBm |
|
N-S10-F31L20 |
SFP+ |
20km |
1310nm |
DFB |
SM |
-4 .5~ +0.5dBm |
≦-12.6dBm |
|
N-S10-F31L40 |
SFP+ |
40km |
1310nm |
DFB |
SM |
0 ~ +5dBm |
≦-16.0dBm |
|
N-S10-F55L40 |
SFP+ |
40km |
1550nm |
EML |
SM |
-1 ~ +4dBm |
≦-16.0dBm |
|
N-S10-F55L80 |
SFP+ |
80km |
1550nm |
EML+APD |
SM |
0 ~ +4dBm |
≦-23.0dBm |
|
N-S10-F55L100 |
SFP+ |
100km |
1550nm |
EML+APD |
SM |
0 ~ +4dBm |
≦-25.0dBm |
